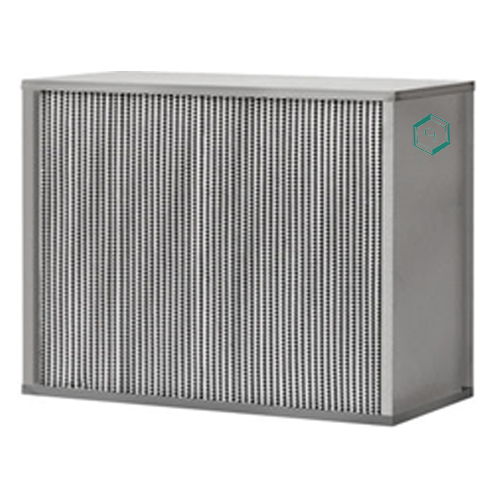

Deep Pleated Hepa Filter

Deep Pleated Hepa Filter

The Deep Pleated HEPA Filter is designed for high airflow applications that require superior particle filtration efficiency. With deep pleat media construction, it offers low-pressure drop, extended service life, and high dust-holding capacity. These filters are ideal for pharmaceutical cleanrooms, hospitals, HVAC systems, and industrial processes where 99.99% efficiency at 0.3 microns is essential.

Application:-

  • Pharmaceutical & Biotechnology Cleanrooms
  • Hospitals & Healthcare Facilities
  • HVAC & Air Handling Units (AHU)
  • Microelectronics & Semiconductor Manufacturing
  • Aerospace & Automotive Paint Booths
Filter Type Deep Pleated HEPA (H13/H14)
Filtration Efficiency 99.99% @ 0.3µm (H13/H14)
Frame Material Galvanized Steel (GI) / SS 304 / SS 316 / Aluminum
Media Material Glass Fiber / Synthetic Fiber
Pleat Style Deep Pleat with Corrugated Aluminum/Plastic Separators
Gasket Type Neoprene / EPDM / PU Gel Seal
Faceguard Expanded Mesh / Protective Grid (Optional)
Available Sizes 610x610x292mm / 1220x610x292mm (Customizable)
Airflow Capacity 500–3500 CFM (Varies by size)
Max Operating Temp 80°C (Standard) / 120°C (High-Temp Models)
