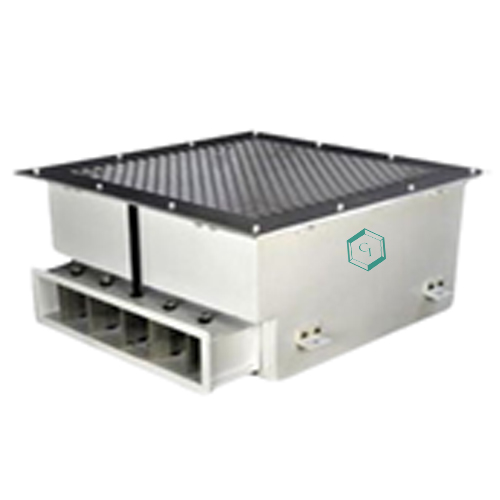

Hepa Terminal Box

Hepa Terminal Box

The HEPA Terminal Box is a high-efficiency air filtration unit designed to deliver clean, particle-free air into controlled environments such as cleanrooms, pharmaceutical facilities, hospitals, and laboratories. It serves as the final stage of air filtration in HVAC systems, ensuring ISO-compliant air purity with minimal contamination risks.

Application:-

  • Pharmaceutical Cleanrooms
  • Hospitals & Surgical Rooms
  • Biotech & Research Labs
  • Microelectronics & Semiconductor Industries
  • Food Processing & Packaging Units
Housing Material Stainless Steel (SS 304/316) / Powder-Coated GI
Filter Type HEPA (99.99% @ 0.3µm)
Available Sizes Customizable (Standard: 600mm x 600mm, 1200mm x 600mm)
Airflow Capacity 250-2500 CFM (Based on model)
Pressure Drop ≤ 25 mm WG
Diffuser Plate Perforated Aluminum / Stainless Steel
Mounting Type Ceiling-Mounted / Wall-Mounted
Duct Connection Size Customizable as per HVAC requirements
Sealing Type Silicone Gasket / Gel Seal
Installation Flush-Mounted / Surface-Mounted
