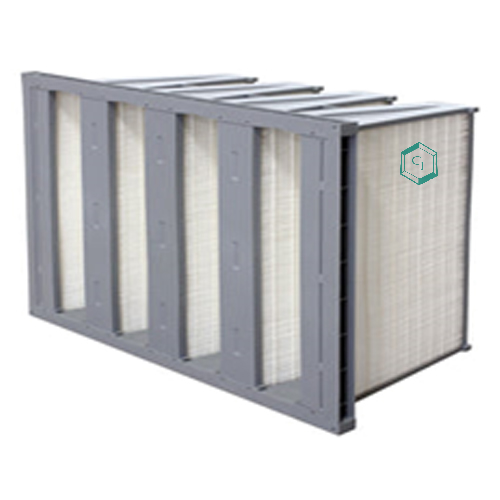

V-Bank Hepa Filter

V-Bank Hepa Filter

The V-Bank HEPA Filter is engineered for high airflow capacity with low-pressure drop and superior filtration efficiency. Its multi-V design increases the filter media area, improving dust-holding capacity and extending filter life. These filters are ideal for HVAC systems, cleanrooms, pharmaceutical industries, and industrial applications requiring high-volume, high-efficiency air filtration.

Application:-

  • HVAC & Air Handling Units
  • Hospitals & Healthcare Facilities
  • Aerospace & Automotive Ind.
  • Pharmaceutical & Biotechnology Cleanrooms
  • Industrial Exhaust & Recirculation Systems
  • Microelectronics & Semiconductor Manufacturing
Filter Type V-Bank HEPA (H13/H14)
Filtration Efficiency 99.99% @ 0.3µm (H13/H14)
Frame Material ABS / Galvanized Steel (GI) / Aluminum / SS 304 / SS 316
Media Material Glass Fiber / Synthetic Fiber
V-Design Configuration 3V / 4V / 5V Options
Sealing Type PU Gel / EPDM / Neoprene Gasket
Available Sizes 610x610x292mm / 1220x610x292mm (Customizable)
Airflow Capacity 1000–4000 CFM (Varies by size & V configuration)
Max Operating Temp 80°C (Standard) / 120°C (High-Temp Models)
Max Humidity 100% RH (Moisture-Resistant Models)
Initial Pressure Drop ≤ 30 mm WC
